LIM3900-20A/B, LIM3900-30A/B, LIM3900-40A/B, LIM3900-50A/B, LIM3900-60A/B, LIM3900-70A/B, LIM3900-15A/B
This LSR is a platinum catalyzed, two-component, high transparence, high tear strength, liquid silicone rubber. Certified by RoHS, it is specially manufactured to produce baby nipples. Our liquid silicone rubber features excellent elastic resilience, good thermal aging resistance and anti-yellowing property. It is stable and resistant to extreme environments and temperatures from -60℃ to 230℃, while still maintaining its useful properties. Please note that the mixture of the two components has an effective operating time of five days under 23℃ condition.

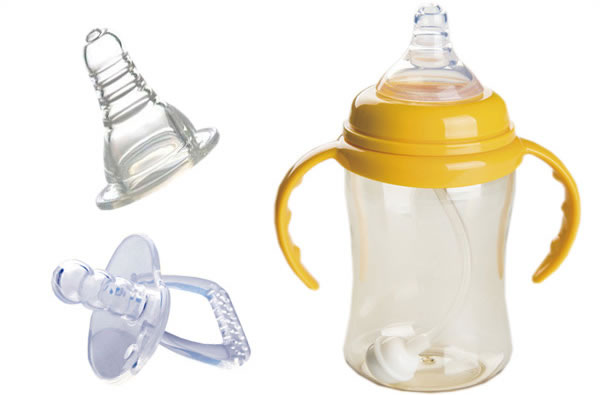

The liquid silicone rubber is ideal for making baby feeding products such as baby nipples, feeding bottles, caps of feeding bottle, baby tableware, seal rings of breast pump, baby toys, etc.
The shelf life for this product is 360 days in a room temperature of no more than 30℃. Once open, keep sealed, store in cool place and consume within seven days.

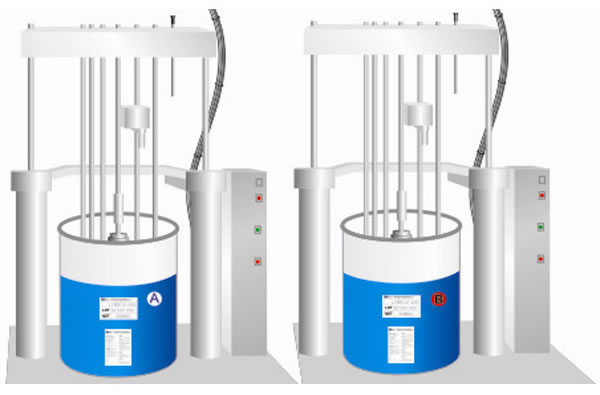

Use a static mixer to mix the two components, A and B, with a ratio of 1:1. Feed the mixture directly into an injection molding machine.
It is packed in 20kg or 200kg barrels.
|Physical properties||Test method||Unit||LIM3900-15A/B||LIM3900-20A/B||LIM3900-30A/B||LIM3900-40A/B||LIM3900-50A/B||LIM3900-60A/B||LIM3900-70A/B|
|Viscosity||DIN53019||mPa.s||(80 ~ 90) ×104||(60 ~ 80) ×104||(75 ~ 100) ×104||(75 ~ 150) ×104||(70 ~ 90) ×104||(70 ~ 100) ×104||(80 ~ 90) ×104|
|Light transmittance||%||≥80||≥80||≥80||≥80||≥ 80||≥80||≥80|
|Elastic resilience||≥ 45||≥ 45||≥45||≥55||≥58||≥ 65||≥ 60|
|Tensile strength||D412||MPa||≥ 5.5||≥ 6.5||≥8.5||≥8.5||≥ 8.5||≥ 8.5||≥ 8.5|
|Elongation at Break||D624B||KN/m||≥ 9.0||≥ 8.0||≥ 15||≥ 27||≥ 30||≥ 30||≥ 32|
|Tear strength||D412||%||≥ 1000||≥950||≥880||≥650||≥ 500||≥450||≥ 440|
|Compression set||DIN53 517 22hrs @ 175 ℃||%||≤25||≤25||≤25||≤25||≤25||≤25||≤25|
|Linear shrinkage||JISK 6301||%||≤ 2.5||≤ 2.5||≤ 2.5||≤2.5||≤ 2.5||≤ 2.5||≤ 2.5|
The above technical properties are for reference only. For detailed molding conditions, please contact us directly.
